2 Gang IP Intercom

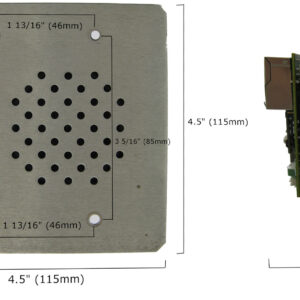

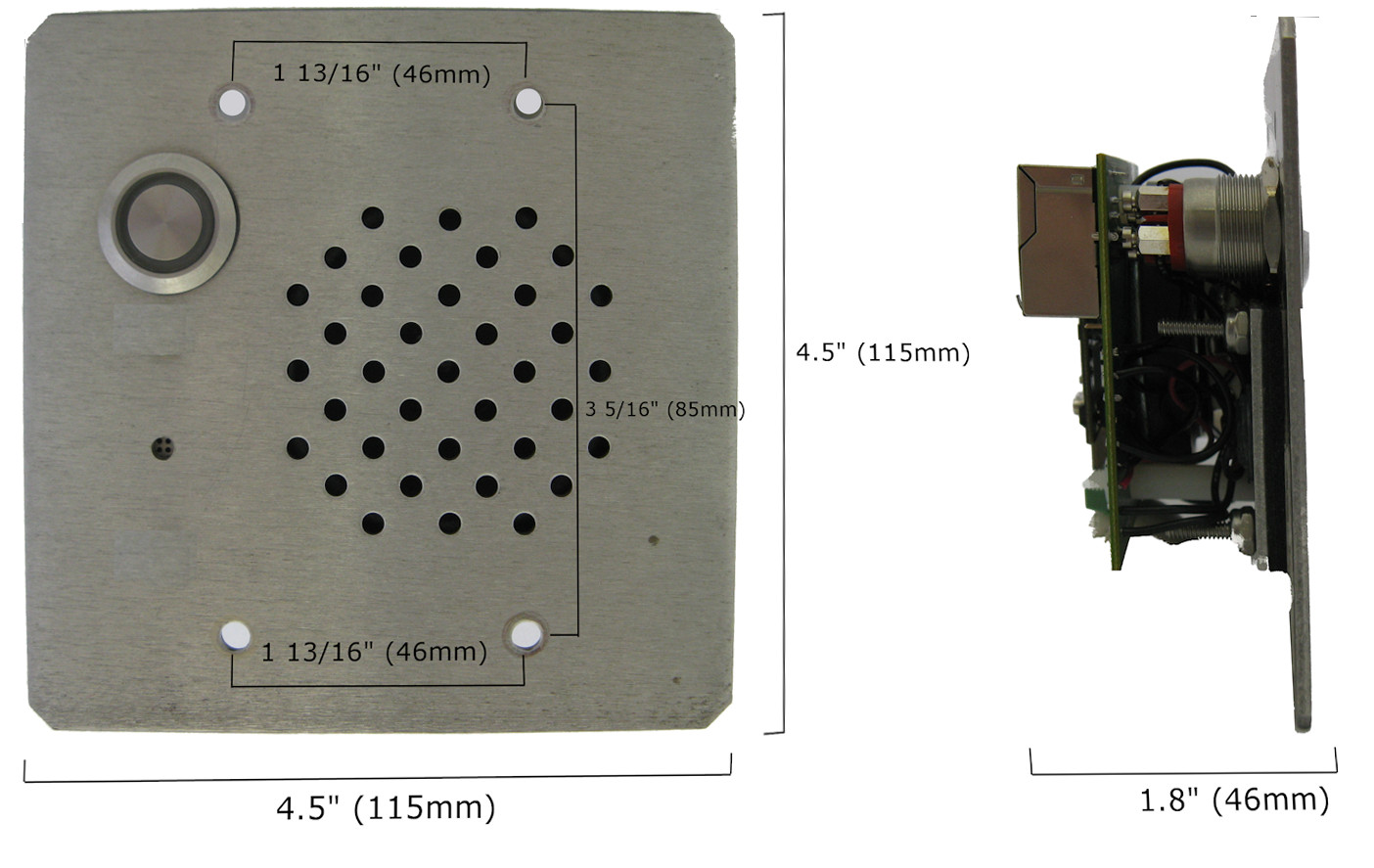

ALL NEW!  PoE (802.3af) powered indoor/outdoor IP Intercom door station panel that fits into a standard 2-Gang electrical box with plaster ring and has a minimum depth of 2″.   Full-Duplex or Half-Duplex operation can be selected via software.

Ordering Options:

Feature SKU
IP7 INT-IP-2Gang
S3 INT-IP-2Gang-S3
S3/InformaCast INT-IP-2Gang-S3-IC

Detailed information about each feature is described in the “Additional information” tab below.

SKU: INT-IP-2Gang Category:

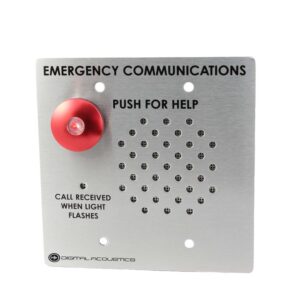

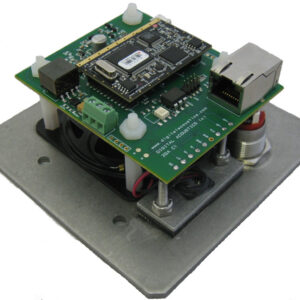

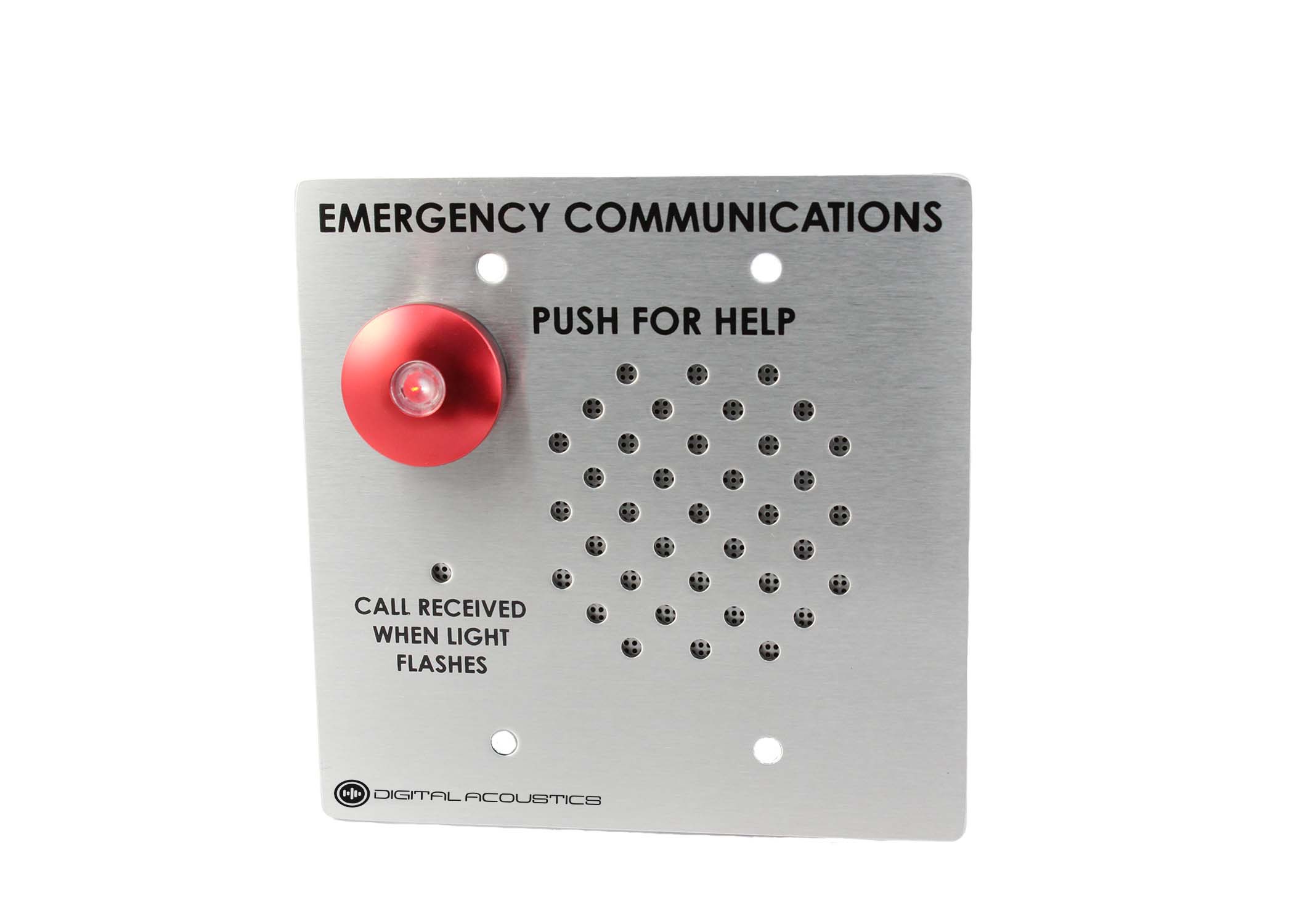

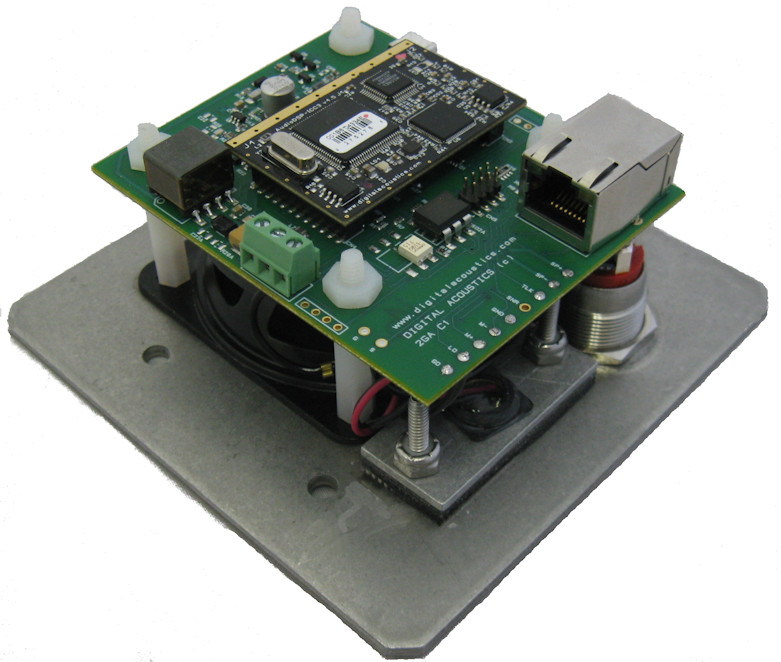

The INT-IP-2Gang is an all-in-one IP intercom door station panel, SIP intercom or VoIP intercom that is designed to fit in an industry standard 2-gang electrical box with plaster ring (min depth of 2″).  Powered by a PoE (802.3af) network cable, installation is a snap. Connect the INT-IP-2Gang to the PoE cable, place it into the 2-gang box and secure it with the four included security screws (T10).

This innovative IP intercom door station design is perfect for new or retrofit applications.

Features:

  • 12 gauge stainless steel panel
  • Integrated water resistant Microphone with windscreen
  • Integrated 8-Ohm speaker with waterproof cone
  • Security screens protect Microphone and Speaker
  • Integrated vandal resistant Call button with illuminated LED
  • Integrated Relay with Normally Open and Normally Closed connections (1 Amp at 30VDC or 120VAC) for access control
  • Software configurable for Full-Duplex or Half-Duplex operation
  • Powered by PoE (802.3af) network switch or injector
  • Includes four stainless steel security screws (T10)

The INT-IP-2Gang IP intercom door station panel is compatible with TalkMaster Software, most SIP 2.0 (VoIP) based phone systems, or in SIP peer-to-peer mode.

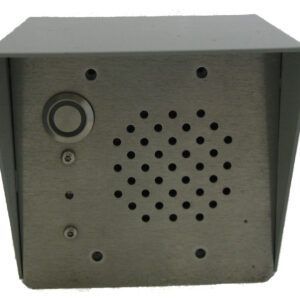

When installing the INT-IP-2Gang IP intercom door station panel in outdoor locations, it should be installed under an eave or in a hooded box (order part number PNL-BB7) to prevent direct exposure to rain and snow.

User selectable full or half duplex operation.

Click for Product Datasheet

Latest posts by ezenteno (see all)
    IP7

    The IP7 Firmware Feature enables compatibility with Digital Acoustics TalkMaster FOCUS software and/or to SIP based phone systems.

    TalkMaster FOCUS enables multiple console operators to communicate with IP Endpoints through two-way intercom calls and to send one-way messages to predefined paging groups.

    The IP7 Firmware also enables connection to a SIP based phone system and to receive calls and if so equipped to initiate a call. SIP Peer-to-Peer mode is also supported.

    IP Endpoints can connect to TalkMaster or to a SIP phone system or to both systems concurrently.

    TalkMaster Administrator Console can be used to configure all of the the IP Endpoint's connections and options.

    S3

    The S3 Firmware Feature enables an IP Endpoint to connect to a SIP based Phone System.

    S3 Firmware enables the IP Endpoint to be configured through a standard web browser and supports the high fidelity G.722 voice codec. in addition to the standard G.711 uLaw and aLaw voice codecs. IP Endpoint can receive and automatically answer calls. They can also initiate a SIP call if so equipped.

    SIP Peer-to-Peer mode is also supported.

    S3/InformaCast

    The S3/InformaCast Firmware feature enables the IP Endpoint to connect to Singlewire's InformaCast software and to SIP based Phone systems. Please note that InformaCast only supports outbound paging even on products that have two-way capabilities.

    With S3/InformaCast firmware, IP Endpoints can be grouped together for multicast paging from Cisco Universal Call Manager (CUCM) or other IP based phone systems.

    It also enables the IP Endpoint to optionally connect to a SIP based Phone System with browser based configuration as well as the high fidelity G.722 voice codec in addition to the standard G.711 uLaw and aLaw voice codecs.

    SIP Peer-to-Peer mode is also supported.
