2 Gang Analog Intercom Panel

2 Gang vandal-resistant stainless steel call station panel with 8 ohm Speaker, Microphone and LED Call Button.

Also available as:
PNL-CIS4-M-DA – Call Button does not have LED
PNL-CIS4-DA – Does not include the Microphone and Call Button does not include an LED (only supports Half Duplex conversations)

SKU: PNL-CIS4-M-L-DA Category:

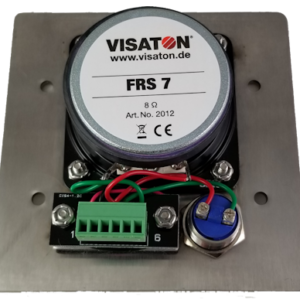

The PNL-CIS4-M-L-DA is a vandal resistant 2Gang analog call station panel with speaker, microphone and LED call button.  This call station is designed for half-duplex or full-duplex operations in situations when you need to have exceptionally clear 2-way conversations.  Suitable for indoor or outdoor environments.  Speaker and Microphone are both weather resistant.  Security screening protects the Speaker and Microphone.

Connect to our Full or Half Duplex IP Intercoms such as the IP7-FX using shielded twisted pair cabling (up to 1000′ using 18 AWG).  A six pin 3.81mm pluggable connector aids in connecting the call station to the IP device.

Other Models available:
PNL-CIS4-M-DA

    • Same as the PNL-CIS4-M-L-DA except the call button does not have an LED

PNL-CIS4-DA

    • Same as the PNL-CIS4-M-DA except there is no Microphone
    • Speaker functions as a Speaker and Microphone – Only supports Half Duplex conversations
