Desktop/Wallmount IP Intercom

IP-Enabled Desktop or wall mount all-in-one IP intercom, White, 1 Watt, PoE-ready. Wall mount plate is included.

Ordering Options:

Feature SKU
IP7 IP7-EDW-POE
S3 IP7-EDW-POE-S3
S3/InformaCast IP7-EDW-POE-S3-IC

Detailed information about each feature is described in the “Additional information” tab below.

SKU: IP7-EDW-POE Category:

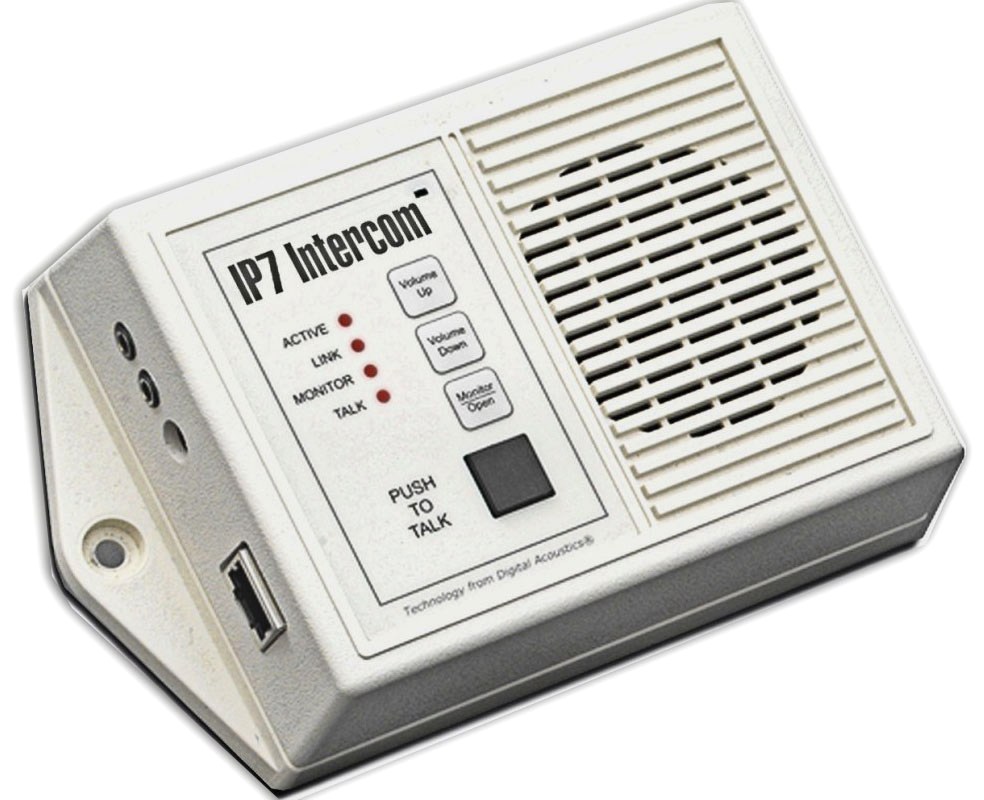

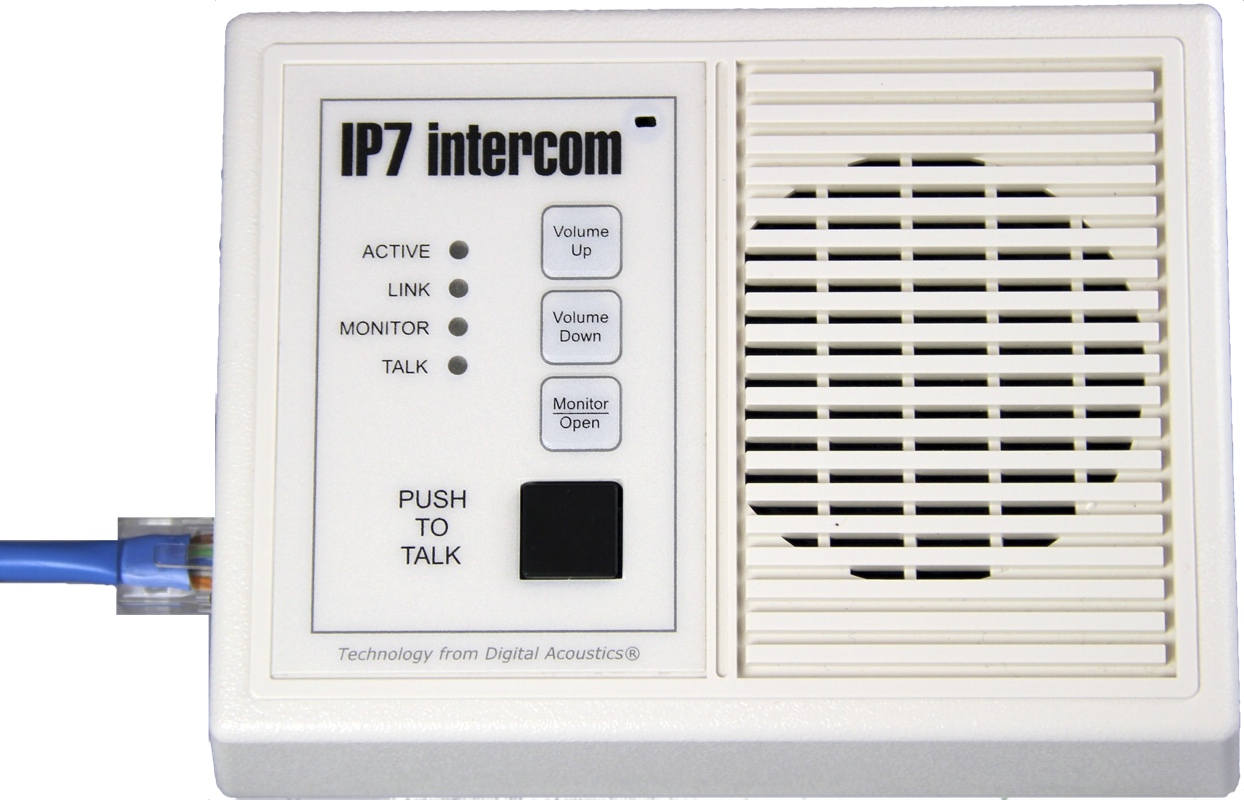

The IP7-EDW-POE is an all-in-one IP Intercom.  The device is designed to be installed in a secure area such as a teacher’s desk and can support either Full Duplex or Half Duplex communications.  The base can be removed and replaced with the included wall mount plate for a more permanent installation.  The plastic enclosure houses the following integrated components:

  • Electret Microphone
  • 8-Ohm Speaker
  • Talk/Call button
  • Monitor/Open button (used for Direct Mode to end a call or activate the remote IP Endpoint’s on-board dry contact relay)
  • 3.5mm audio jacks
  • PoE-ready RJ-45 network connector
  • A 9VDC Wall Power Supply is available as an option



This model is popular in installations where a single IP audio endpoint needs to be monitored.  Using the embedded Direct Mode firmware option, the Desktop/Wallmount IP Intercom can be used to monitor a single half-duplex IP Endpoint and activate that IP Endpoint’s dry contact relay. The Direct Mode option does not require any software to be running on a computer. Instructions for Direct Mode Configuration can be found on our site on the Application Notes page under Support.

Compatible with TalkMaster™ Software and SIP 2.0 Phone Systems.  Patented Fail Forward™ redundancy technology.

A limited quantity is available in black.
Ordering Options:

Feature SKU
IP7 IP7-EDB-POE
S3 IP7-EDB-POE-S3
S3/InformaCast IP7-EDB-POE-S3-IC

Detailed information about each feature is described in the “Additional information” tab.

Click for Product Datasheet

IP7

The IP7 Firmware Feature enables compatibility with Digital Acoustics TalkMaster FOCUS software and/or to SIP based phone systems.

TalkMaster FOCUS enables multiple console operators to communicate with IP Endpoints through two-way intercom calls and to send one-way messages to predefined paging groups.

The IP7 Firmware also enables connection to a SIP based phone system and to receive calls and if so equipped to initiate a call. SIP Peer-to-Peer mode is also supported.

IP Endpoints can connect to TalkMaster or to a SIP phone system or to both systems concurrently.

TalkMaster Administrator Console can be used to configure all of the the IP Endpoint’s connections and options.

S3

The S3 Firmware Feature enables an IP Endpoint to connect to a SIP based Phone System.

S3 Firmware enables the IP Endpoint to be configured through a standard web browser and supports the high fidelity G.722 voice codec. in addition to the standard G.711 uLaw and aLaw voice codecs. IP Endpoint can receive and automatically answer calls. They can also initiate a SIP call if so equipped.

SIP Peer-to-Peer mode is also supported.

S3/InformaCast

The S3/InformaCast Firmware feature enables the IP Endpoint to connect to Singlewire’s InformaCast software and to SIP based Phone systems. Please note that InformaCast only supports outbound paging even on products that have two-way capabilities.

With S3/InformaCast firmware, IP Endpoints can be grouped together for multicast paging from Cisco Universal Call Manager (CUCM) or other IP based phone systems.

It also enables the IP Endpoint to optionally connect to a SIP based Phone System with browser based configuration as well as the high fidelity G.722 voice codec in addition to the standard G.711 uLaw and aLaw voice codecs.

SIP Peer-to-Peer mode is also supported.
