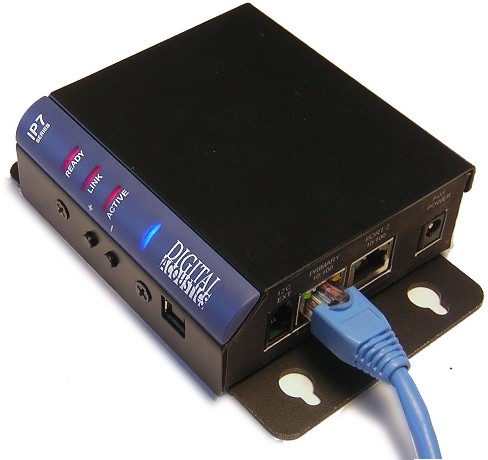

IP7 IP Audio Endpoint with Wall Plate mount attachedfull duplex ip intercom

Full Duplex IP Intercom


Full-duplex IP Intercom endpoint, requires external mic/speaker, 8 Watt, DIN/Surface Mount, 10/100 integrated switch, PoE-ready. Compatible with TalkMaster Software and SIP 2.0 Phone Systems.

    Product Description

    The IP7-FD is a full-duplex IP Intercom with Acoustic Echo Cancellation. If your application requires a full duplex solution, the IP7-FD is the right product for you. It provides for hands free usage for both the calling and answering parties.  For full-duplex operation, the IP7-FD must be connected to a separate Microphone and Speaker and the other party must use a handset or headset. Pair the IP7-FD with the PNL-CIS4-M rugged 2-gang call station which is suitable for indoor or outdoor installations.

    The IP7-FD includes:

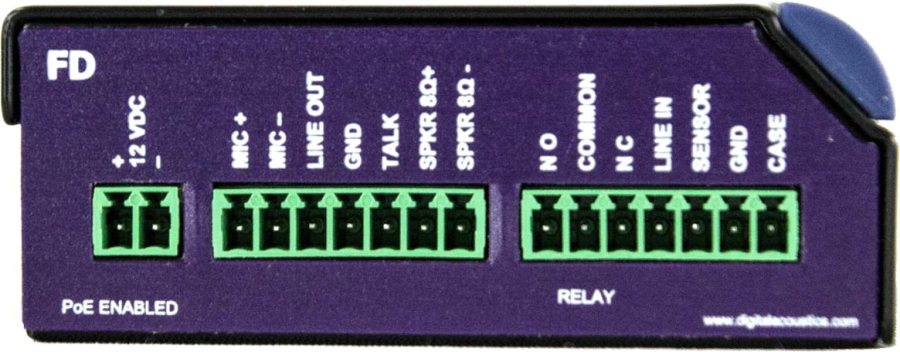

    • Terminals to connect to a call station’s call button
    • Electret Microphone input terminals
    • 8 Ohm Speaker output terminals
    • Software controlled, dry contact relay with “normally open” and “normally closed” terminals
    • Software controlled, “sensor” input terminals

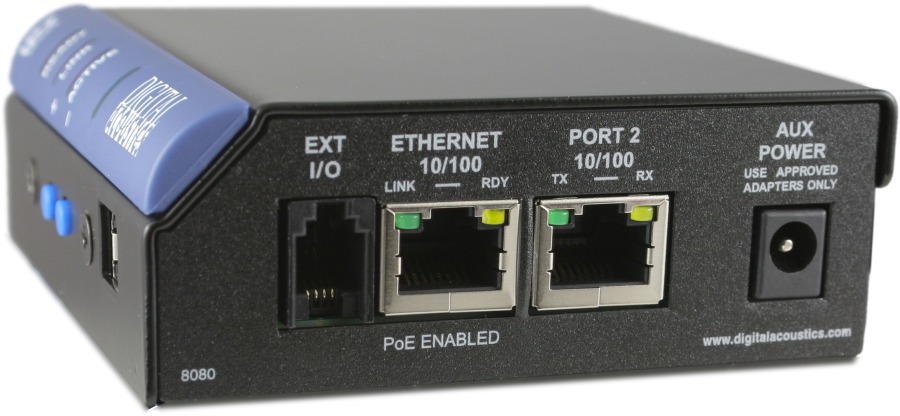

    • PoE is standard on the primary network RJ-45 port
    • A secondary network RJ-45 port is available to connect another IP device to the network
    • Patented Fail Forward redundancy technology


    A DIN clip for mounting to 35mm DIN rail as well as a surface mount plate are also included.

    Compatible with TalkMaster Software and SIP 2.0 Phone Systems as a SIP Intercom or VoIP Intercom.

    Click for Product Datasheet
