Substitute for Eagle 2244

4 Zone Expander

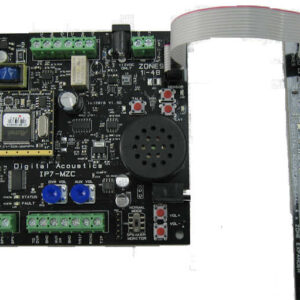

4 port zone expansion for the Multi Zone Controller (IP7-MZC). Cascade up to twelve 4-port zone expansions on a single Multi Zone Controller for a total of forty-eight zones of full-duplex audio. Any combination of zones can be activated via software control

    Product Description

    Each ZX4L provides four 5-position 3.81MM plugable connectors:

    • Four Speaker connections suitable to drive a powered speaker, balanced or unbalanced amplifier or a one watt 8 Ohm speaker
    • Four Microphone connections for either 2-wire or 3-wire 12V powered microphones
    • Four Speaker volume controls
    • Four Microphone volume controls
    • Four DVR connections to provide for 24×7 microphone recording
    • Six-inch keyed ribbon cable for connecting to an IP7-MZC or another IP7-ZX4L

    Zones communicate over IP through the software controlled Multi Zone Controller (IP7-MZC-FD) via the TalkMaster software or via the SIP protocol. Use with 2-way Zone Controller IP7-MZC-FD (designed for use by “call centers”).

    Click for Product Datasheet
