Ruggedized Half Duplex IP Intercom

This product is only available for special orders.  Please contact Sales for a quote.

Ruggedized half-duplex IP Intercom endpoint, Vibration and Moisture resistant Half Duplex, requires external mic/speaker, 1 Watt, DIN/Surface Mount, External Power Supply required. Compatible with TalkMaster Software and SIP 2.0 Phone Systems.

SKU: IP7-ST-RT Category:

This product is only available for special orders.  Please contact Sales for a quote.

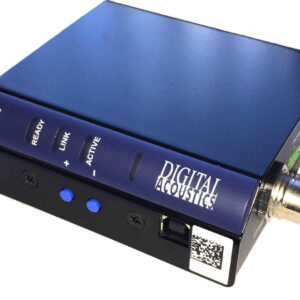

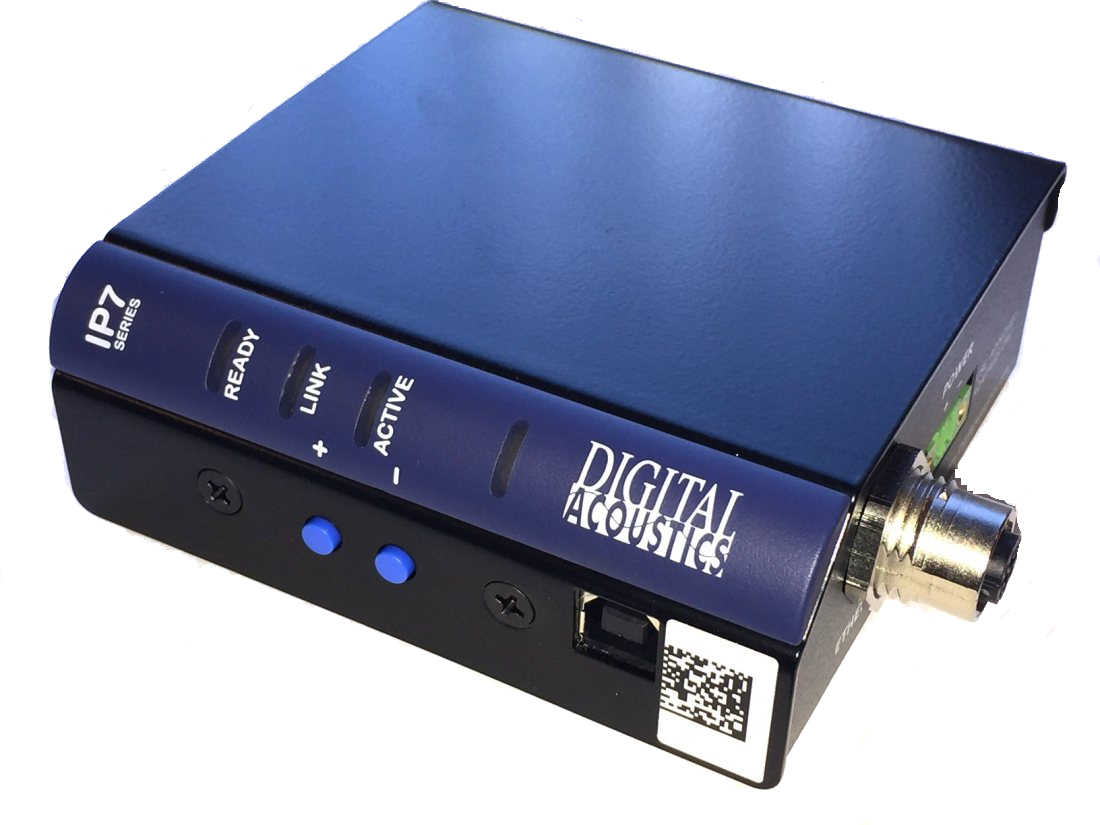

The IP7-ST-RT is a ruggedized half-duplex IP Intercom built for harsh environments where vibration might cause normal connections to shake loose.  The IP7-ST-RT uses an M12 Ethernet connector (instead of an RJ-45) and 3.5mm pluggable screw-on terminal blocks (instead of 3.81mm pluggable). The internal electronics are also conformal coated to prevent damage from moisture

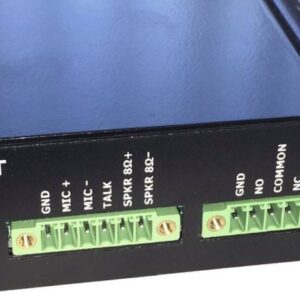

The 3.5mm pluggable terminal blocks provide the following connections:

  • Speaker terminals for driving an 8 Ohm speaker at 1 watt (also supports “single transducer” mode where speaker is utilized for both speaker and a microphone)
  • Microphone terminals for an electret microphone
  • Terminals to connect to a “call” button
  • Software controlled on-board dry contact relay with “normally open” and “normally closed” terminals
  • Software controlled input “sensor” terminals

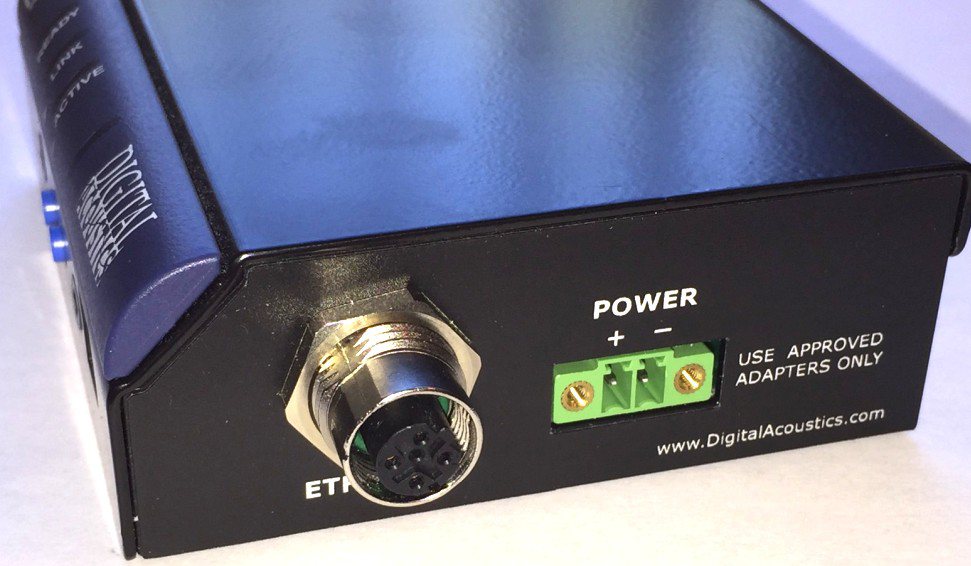

  • External power terminals (9-32VDC)

Also includes a heavy duty DIN clip for mounting to industry standard 35mm DIN Rail.

Compatible with TalkMaster Software and SIP 2.0 Phone Systems. Patented Fail Forward redundancy technology.
