IP 40 Watt Amplifier

IP Audio Amplifier that supports IP Paging and SIP Paging. Provides up to 40 Watt of audio to one or more speakers.  DIN Rail or Surface Mount.  Requires external speaker(s) and external power supply.

Ordering Options:

Feature SKU
IP7 IP7-SS40
S3 IP7-SS40-S3
S3/InformaCast IP7-SS40-S3-IC

Detailed information about each feature is described in the “Additional information” tab below.

SKU: IP7-SS40 Category:

The IP7-SS40 is a 40 watt IP Paging , SIP Paging amplifier.  Its capabilities include:

  • Can supply up to 40 watts into a single 8 Ohm speaker
  • Can drive one or more speakers over a 70V distribution line (requires the COMTR40/70 Line Transformer and speakers with 70V transformers)

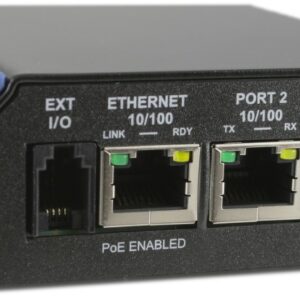

  • A secondary RJ-45 network connector to connect a second IP device to the network
  • Patented Fail Forward redundancy technology


Requires an external 24VDC power supply.

Compatible with TalkMaster FOCUS software, VoIP Connect software  and SIP 2.0 Phone Systems.

Click for Product Datasheet

Latest posts by ezenteno (see all)
    IP7

    The IP7 Firmware Feature enables compatibility with Digital Acoustics TalkMaster FOCUS software and/or to SIP based phone systems.

    TalkMaster FOCUS enables multiple console operators to communicate with IP Endpoints through two-way intercom calls and to send one-way messages to predefined paging groups.

    The IP7 Firmware also enables connection to a SIP based phone system and to receive calls and if so equipped to initiate a call. SIP Peer-to-Peer mode is also supported.

    IP Endpoints can connect to TalkMaster or to a SIP phone system or to both systems concurrently.

    TalkMaster Administrator Console can be used to configure all of the the IP Endpoint's connections and options.

    S3

    The S3 Firmware Feature enables an IP Endpoint to connect to a SIP based Phone System.

    S3 Firmware enables the IP Endpoint to be configured through a standard web browser and supports the high fidelity G.722 voice codec. in addition to the standard G.711 uLaw and aLaw voice codecs. IP Endpoint can receive and automatically answer calls. They can also initiate a SIP call if so equipped.

    SIP Peer-to-Peer mode is also supported.

    S3/InformaCast

    The S3/InformaCast Firmware feature enables the IP Endpoint to connect to Singlewire's InformaCast software and to SIP based Phone systems. Please note that InformaCast only supports outbound paging even on products that have two-way capabilities.

    With S3/InformaCast firmware, IP Endpoints can be grouped together for multicast paging from Cisco Universal Call Manager (CUCM) or other IP based phone systems.

    It also enables the IP Endpoint to optionally connect to a SIP based Phone System with browser based configuration as well as the high fidelity G.722 voice codec in addition to the standard G.711 uLaw and aLaw voice codecs.

    SIP Peer-to-Peer mode is also supported.
